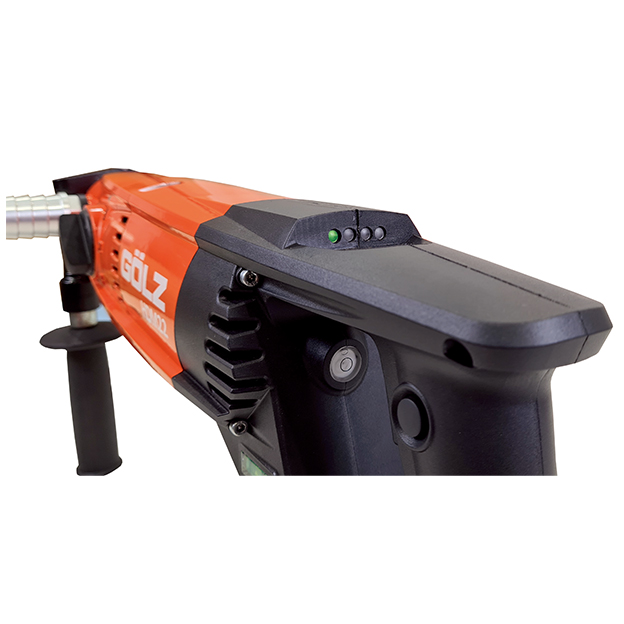

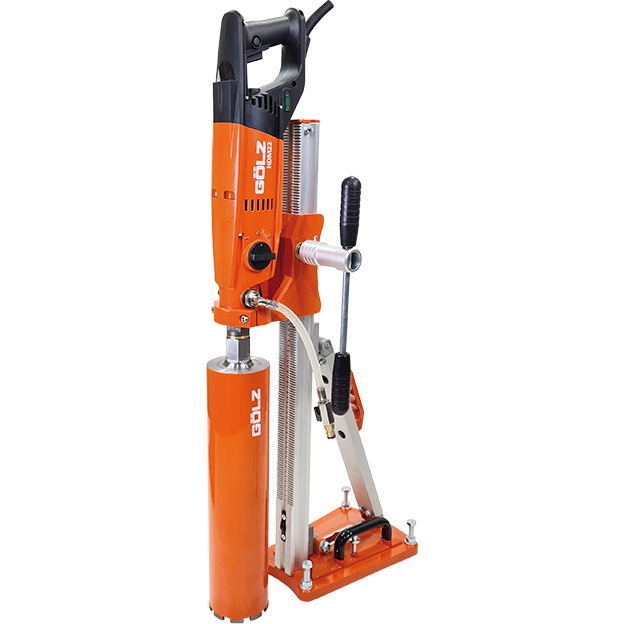

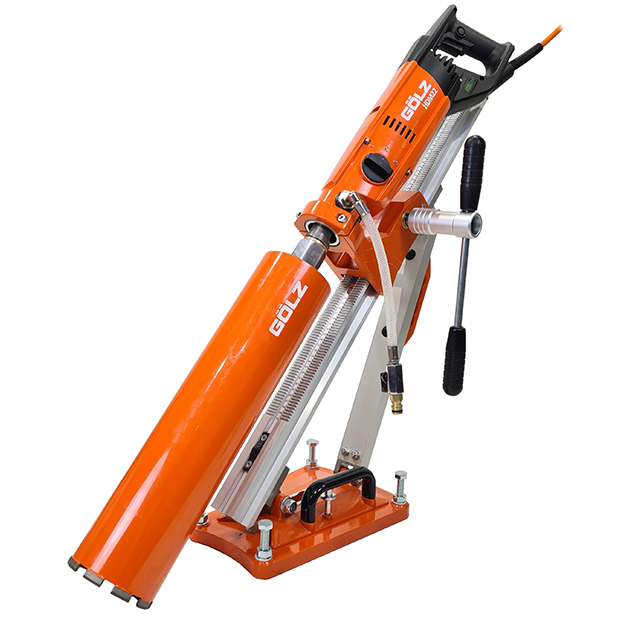

SD160 | HDM22
The compact, lightweight and easy solution for all installation and fastening holes from Ø 10-162 mm
-
Max. Drill-Ø162 mm
-
Travel Length520 mm
-
Baseanchor-/vacuum base
-
Motor3-speed, 2,2 kW, 230 V
ltem number: HDM22 0295 110 9250 | SD160 0295 110 9200
-
FEATURES
![Sliding guide carriage]()

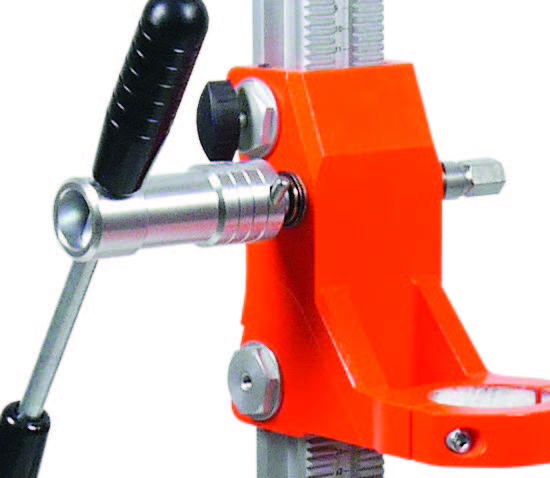

Sliding guide carriage![Laser pointer]()

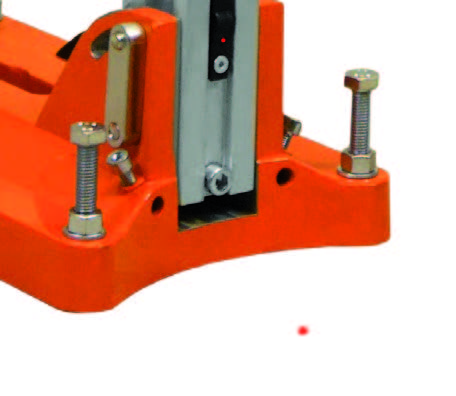

Laser pointer![LED load display]()

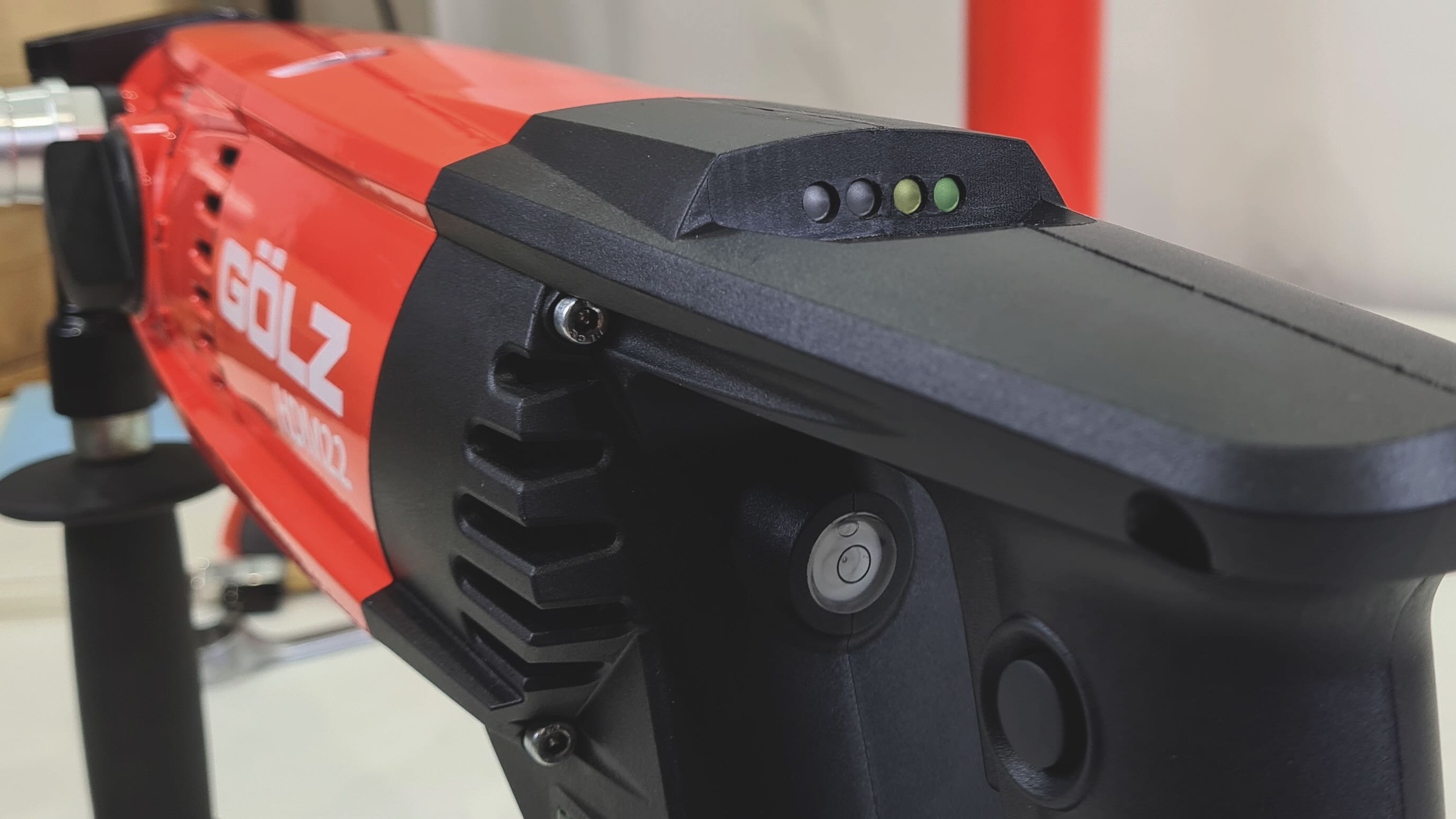

LED load display -
TECH DATA TABLEUser friendly and lightweight

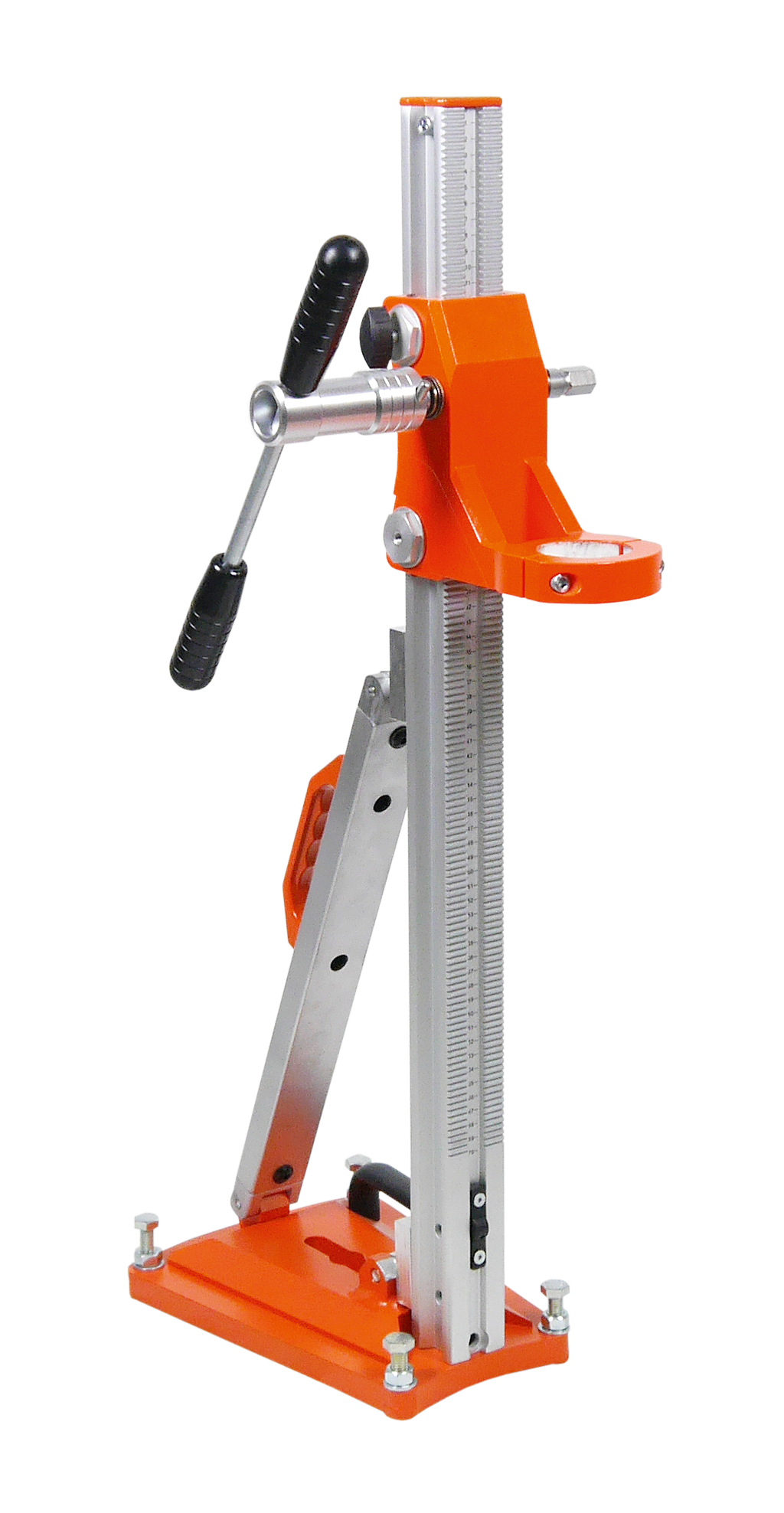

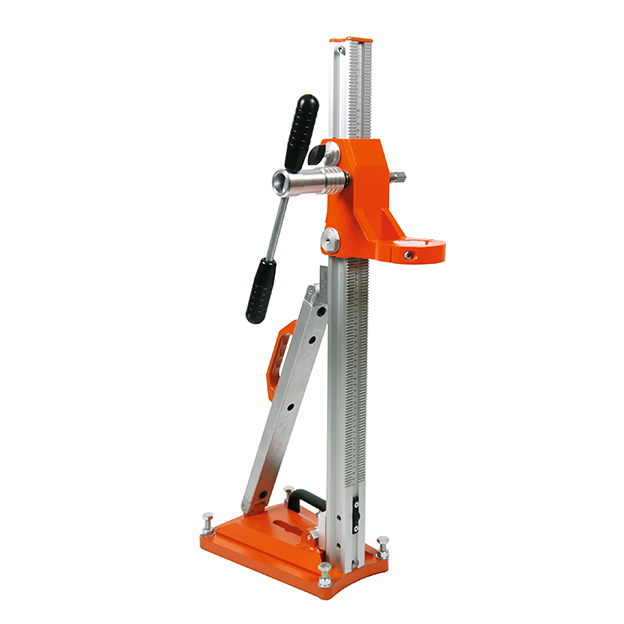

Drill Stand SD160:
• Lightweight aluminum core drill stand
• Smooth-running sliding guide

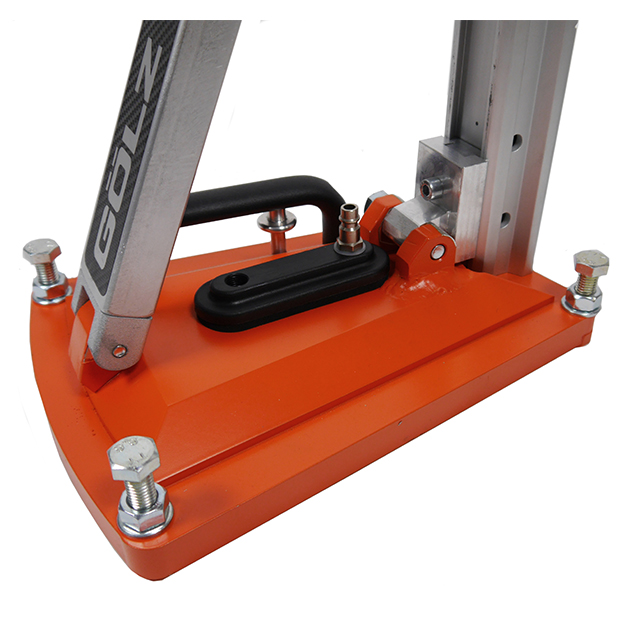

• Combination base for anchor or vacuum fixing
• Lightweight and solid drill stand: 8,6 kg (18,7 lbs)
• Laserpointer - Adjust the Drill Stand to the core hole center
• Travel length: 520 mm (20")
• Maximum diameter: 160 mm (6")
• Angle drilling device up to 45°
• Left and right handed operation
• Tool- and fastening kit included

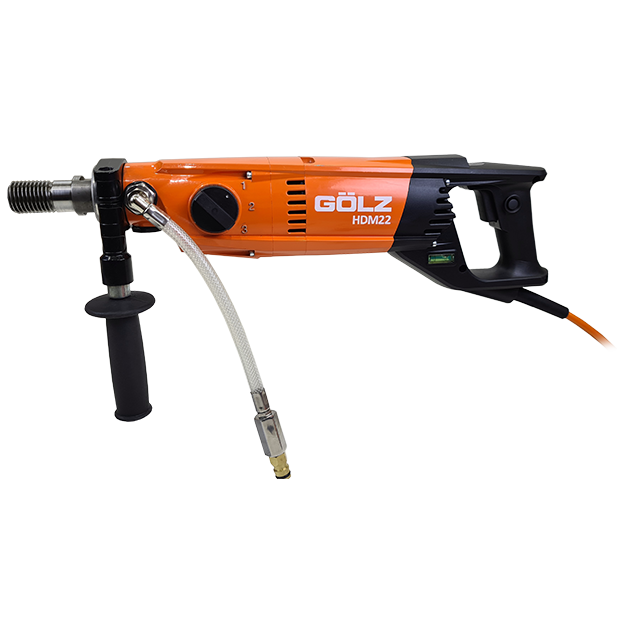

Drill Motor HDM22:• 2,2 kW with 3-speed electric drill motor
• Soft Start Electronic
• Advantage: Coring can be operated hand held or with drill stand
• Overload protection by ELC Electronic Clutch
• Drill motor 7,5 kg (16,5 lbs)
• PRCD
• LED load displaySD160 with anchor-/vacuum base Drill bit connection 1¼” UNC + R1/2" Complete with HDM22 - 1¼” UNC + R1/2” Power 2200 W, 230 V, 50-60 Hz RPM 520/1400/2900 min-1 Drilling Ø Ø 10-160 mm Order number 0295 110 9250 Drill Stand SD160 without drill motor anchor-/vacuum base with ring collar and tool kit, (without fastening kit) Order number 0295 110 9200 -

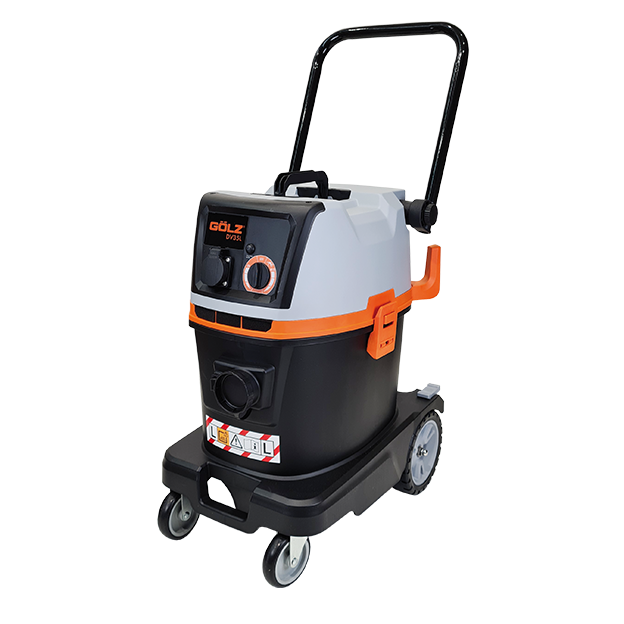

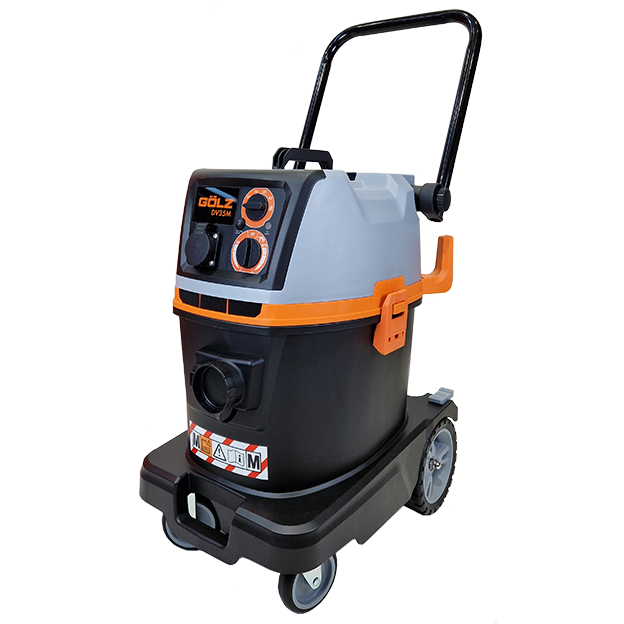

Matching machines
-

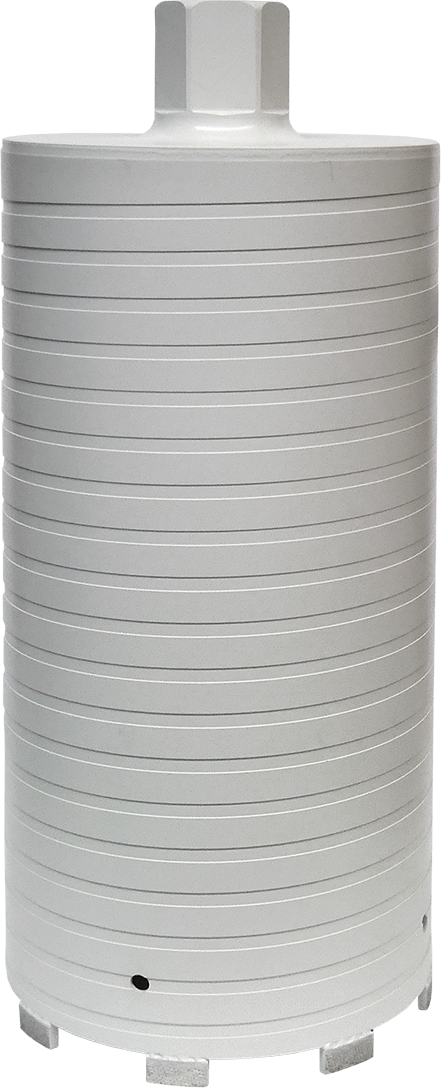

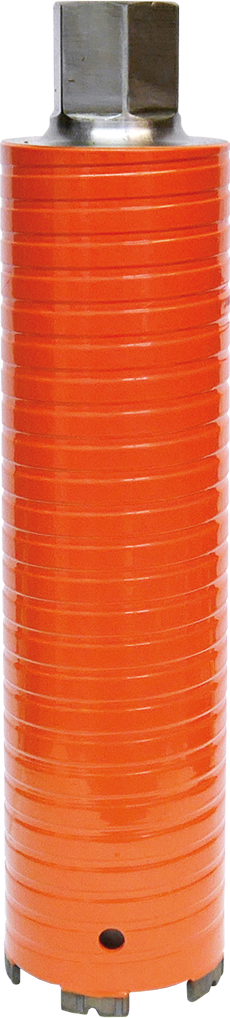

Diamond ToolsSuitable diamond tools – our recommendations
-

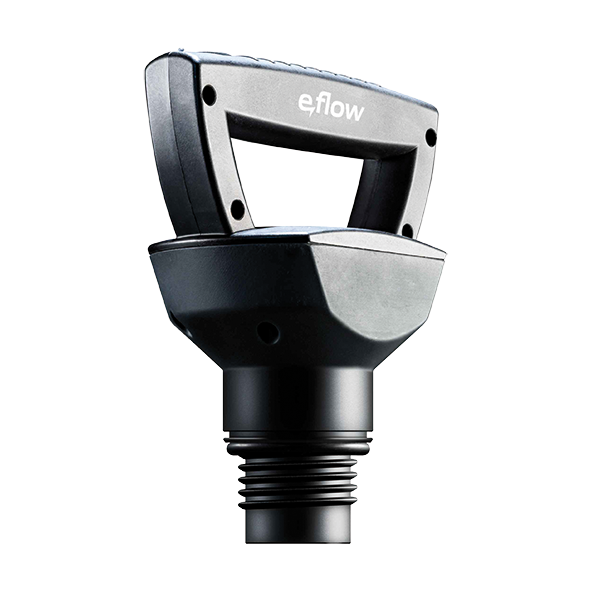

ACCESSORIESComplete your equipment
-
DOWNLOAD MANUAL
